TABLE OF CONTENTS

• Introduction
• Reports
  • Asset Visits Report
  • Waypoint Visits Report
• Generating Waypoint Reports
  • Generating an Asset Visits Report
  • Generating a Waypoint Visits Report

Introduction

Waypoints Reports provide the user with a detailed summary of the total number of waypoints visits carried out by the the whole fleet or a particular asset within a user-defined period of time, including the total number of stops at each waypoint.

Reports

There are 2 (two) types of Waypoints Reports; Asset Visits and Waypoint Visits.

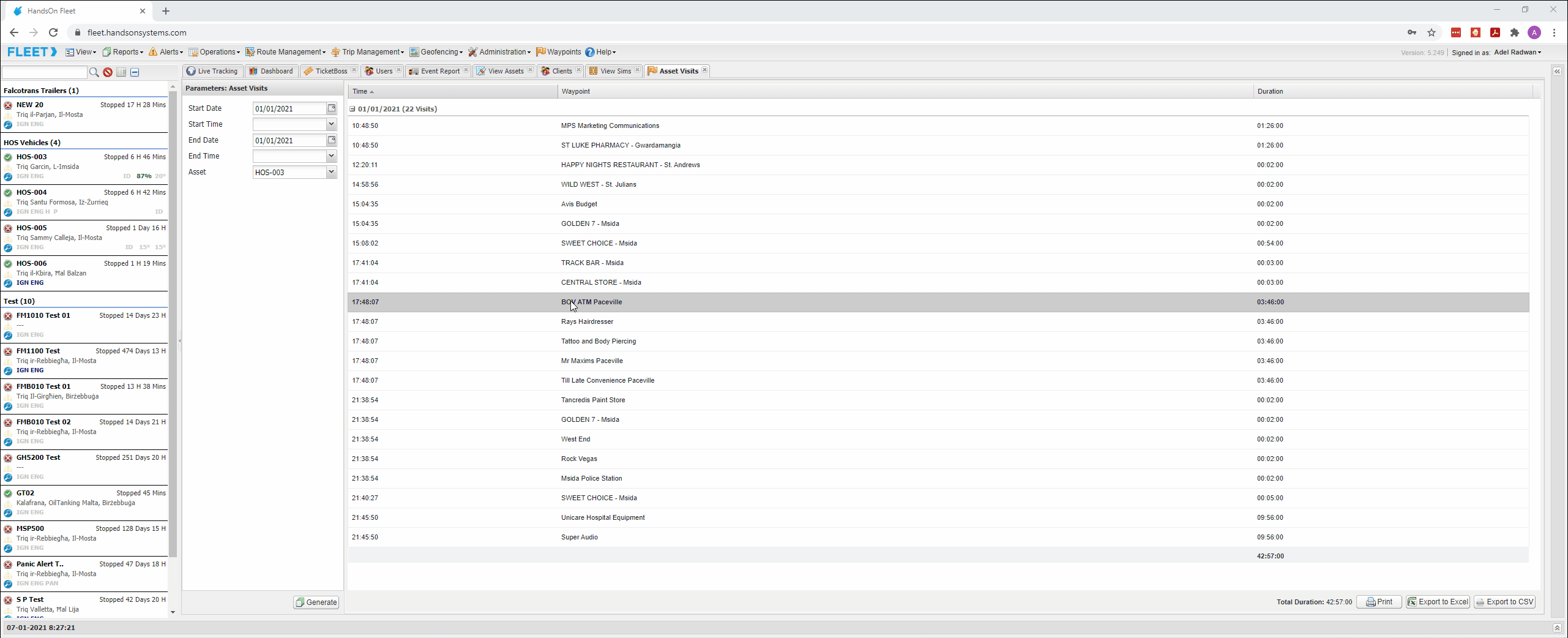

Asset Visits Report

A report showing the waypoints visited by a particular asset within a user-defined period of time. The report is complimented with the duration of each visit.

Waypoint Visits Report

A report showing the assets visiting a particular waypoint within a user-defined period of time. The report is complimented with the duration of each visit together with the total time spent at that particular waypoint.

Generating Waypoint Reports

Generating an Asset Visits Report

An Asset Visit Report is generated by:

1. Go to Reports → Waypoint Report → Asset Visits

2. Set the Start Date (mandatory) and End Date (optional) by typing them in or by clicking on the calendar icons.

3. Select the Start Time, End Time (optional) from their respective drop-down menus.

4. Select the Asset (mandatory) from its respective drop-down menu.

5. Click the Generate button to generate the report.

 Generating a Waypoint Visits Report

A Waypoint Visit Report is generated by:

1. Go to Reports → Waypoint Report → Watpoint Visits

2. Set the Start Date (mandatory) and End Date (optional) by typing them in or by clicking on the calendar icons.

3. Select the Start Time, End Time (optional) from their perspective drop-down menus.

4. Select the Waypoint Type (mandatory) from its respective drop-down menu.

5. Select the Waypoint (mandatory) from its perspective drop-down menu.

6. Click the Generate button to generate the report.

All generated reports can be sorted in an ascending or descending order using a particular column as the sorting point. To sort the report using a particular column:

1. Hover over the required column header in the report.

2. Click on the down downwards triangle arrowhead (⏷).

3. Select between Sort Ascending and Sort Descending from the drop-down menu.

Waypoint Reports can be either printed, exported to Microsoft Excel, Exported as CSV file by clicking the Print, Export to Excel or Export to CSV buttons respectively.
